Core Technology and Features

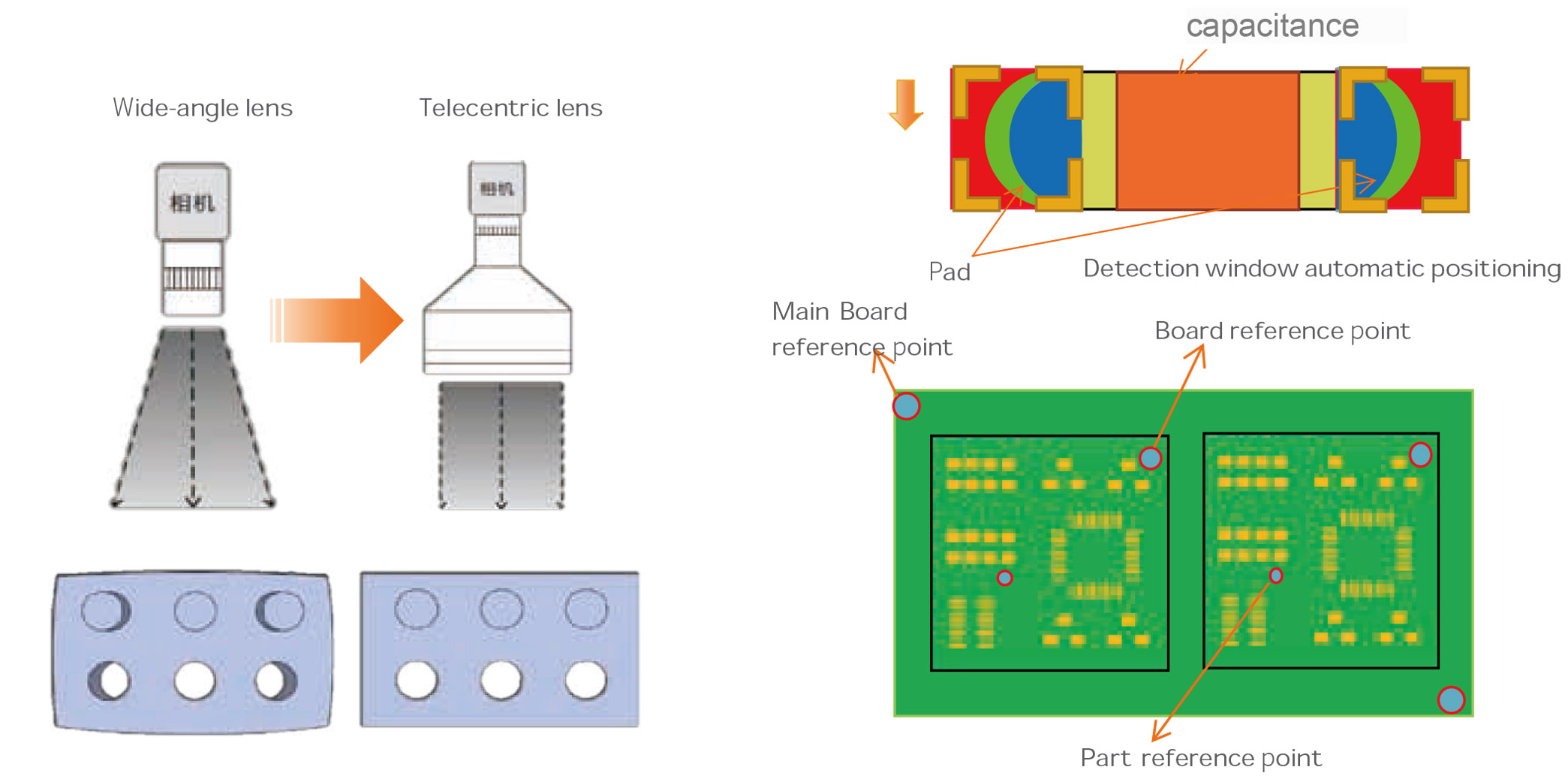

Precise positioning

AOI uses telecentric lens without distortion effect, adopts multi-reference point calibration method, and automatic positioning of detection window, including double positioning of pad and body, which solves the problem of offsetcaused by board deformation and greatly reduces false alarms.

Click the image to view it in full size

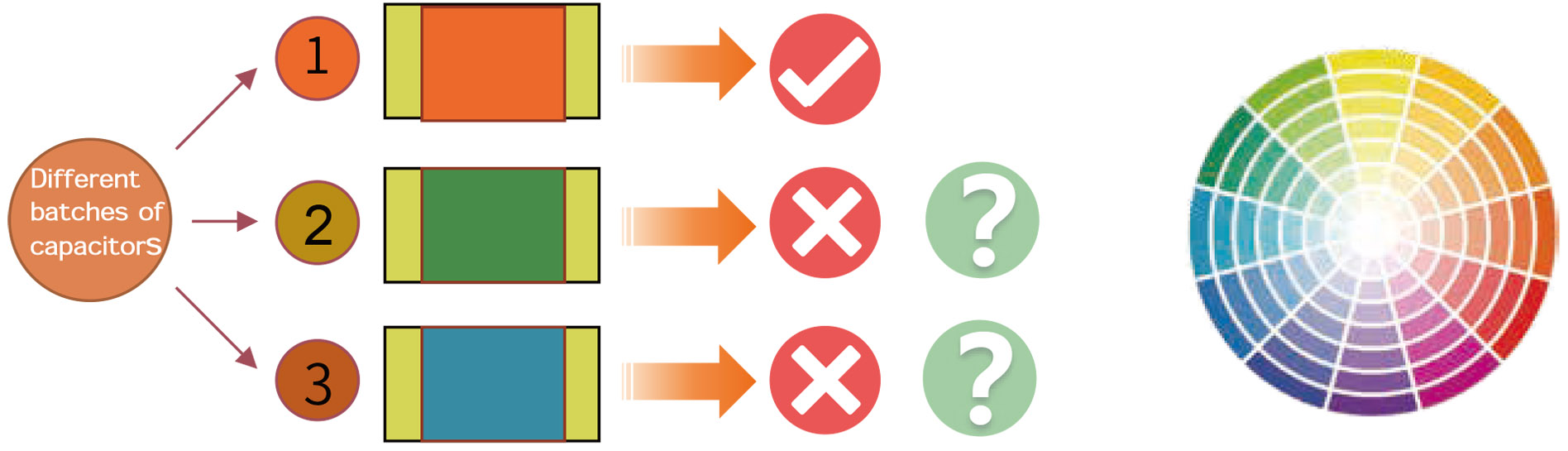

Incoming material difference

AOI use multi-level color selection, which is more compatible with material color differences! Effectively avoid false alarms caused by material color difference!

Click the image to view it in full size

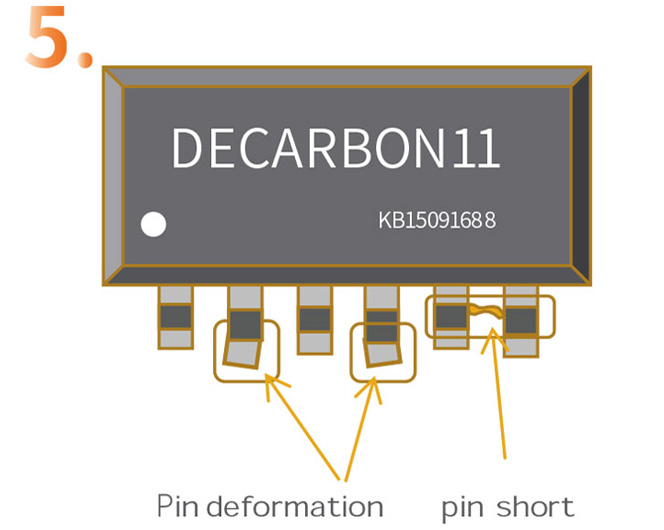

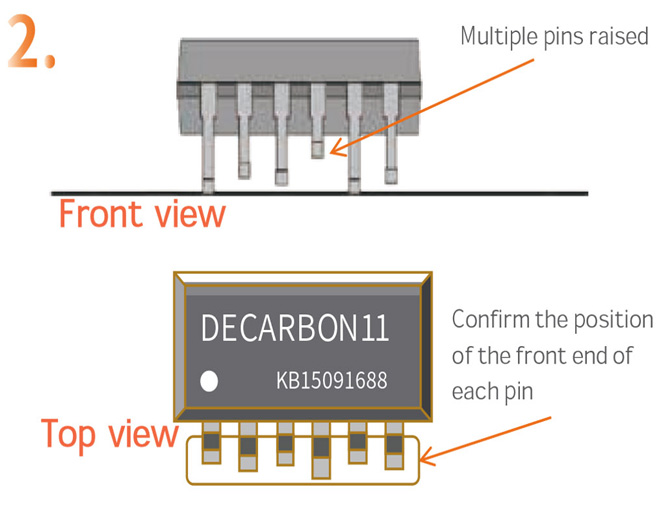

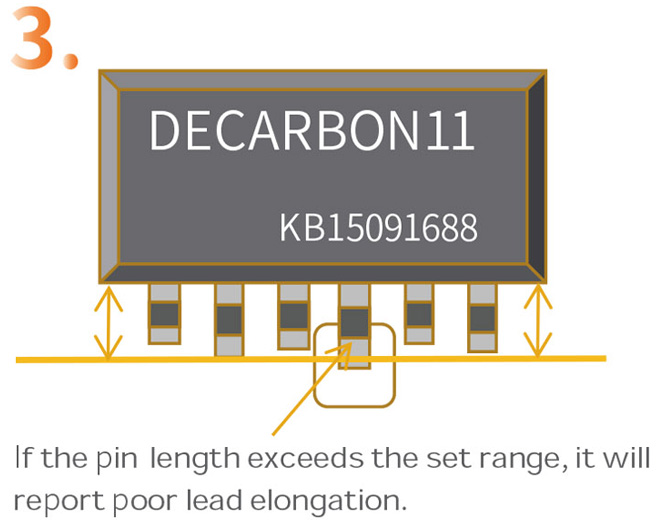

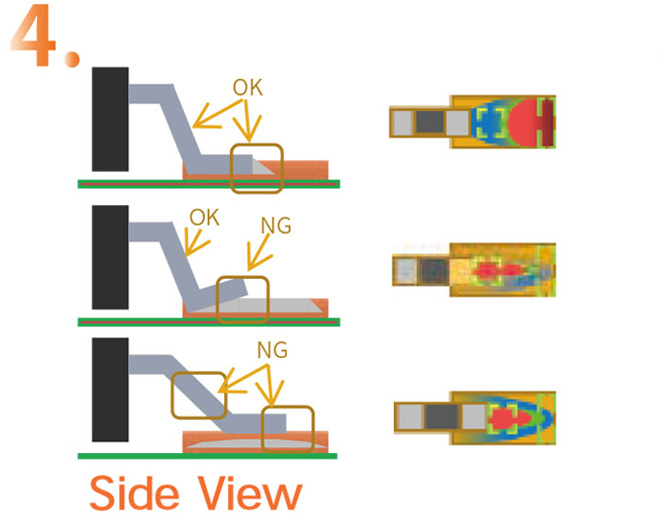

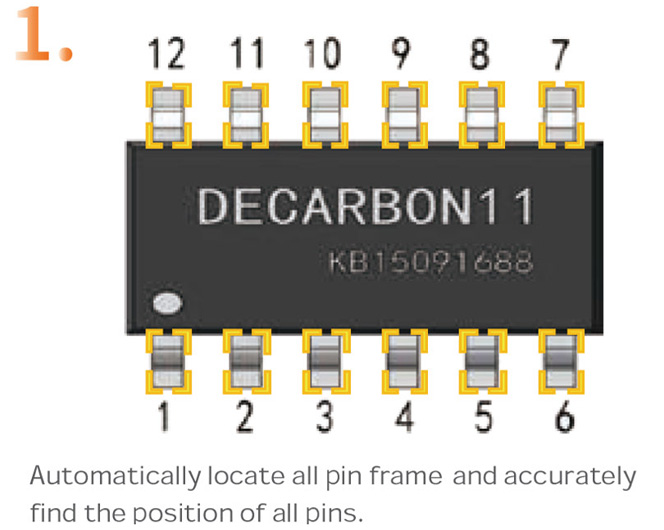

Unqualified IC pins

Click the image to view it in full size
Click the image to view it in full size
Click the image to view it in full size
Click the image to view it in full size
Click the image to view it in full size

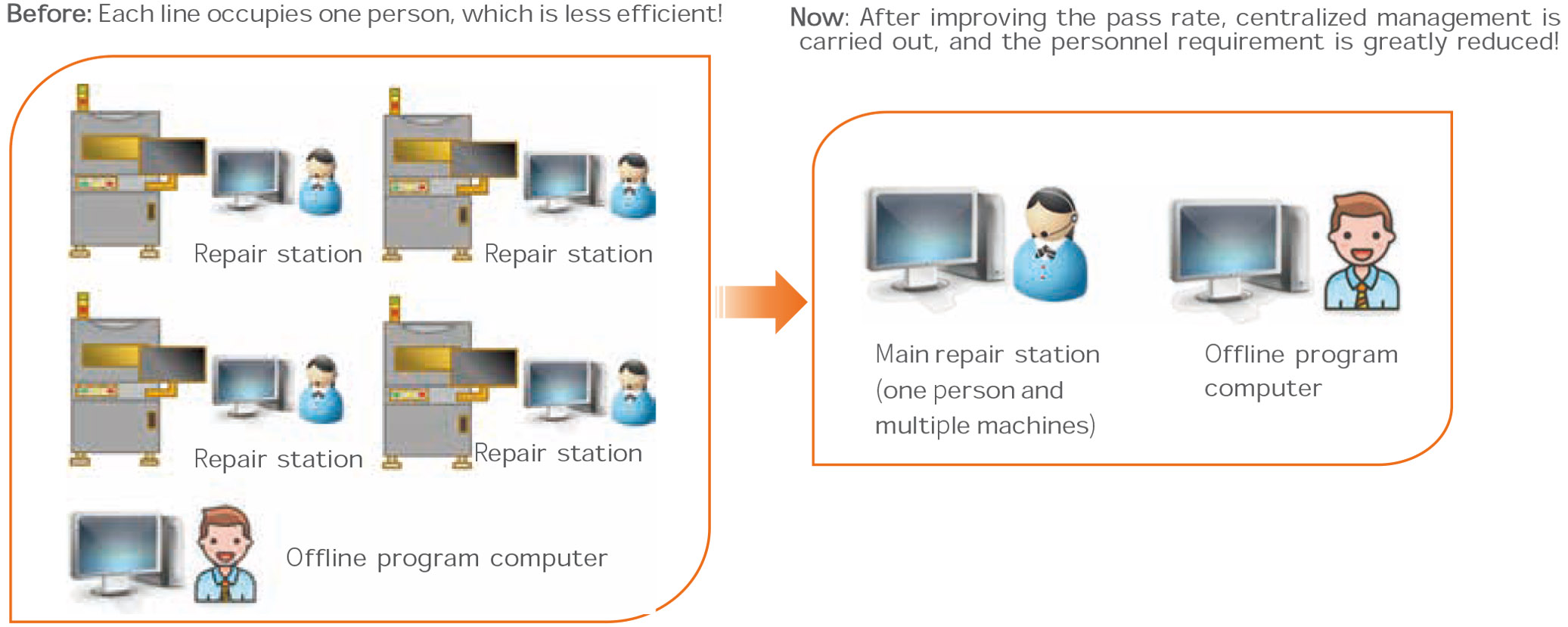

Cost advantages from centralized remote management

Click the image to view it in full size

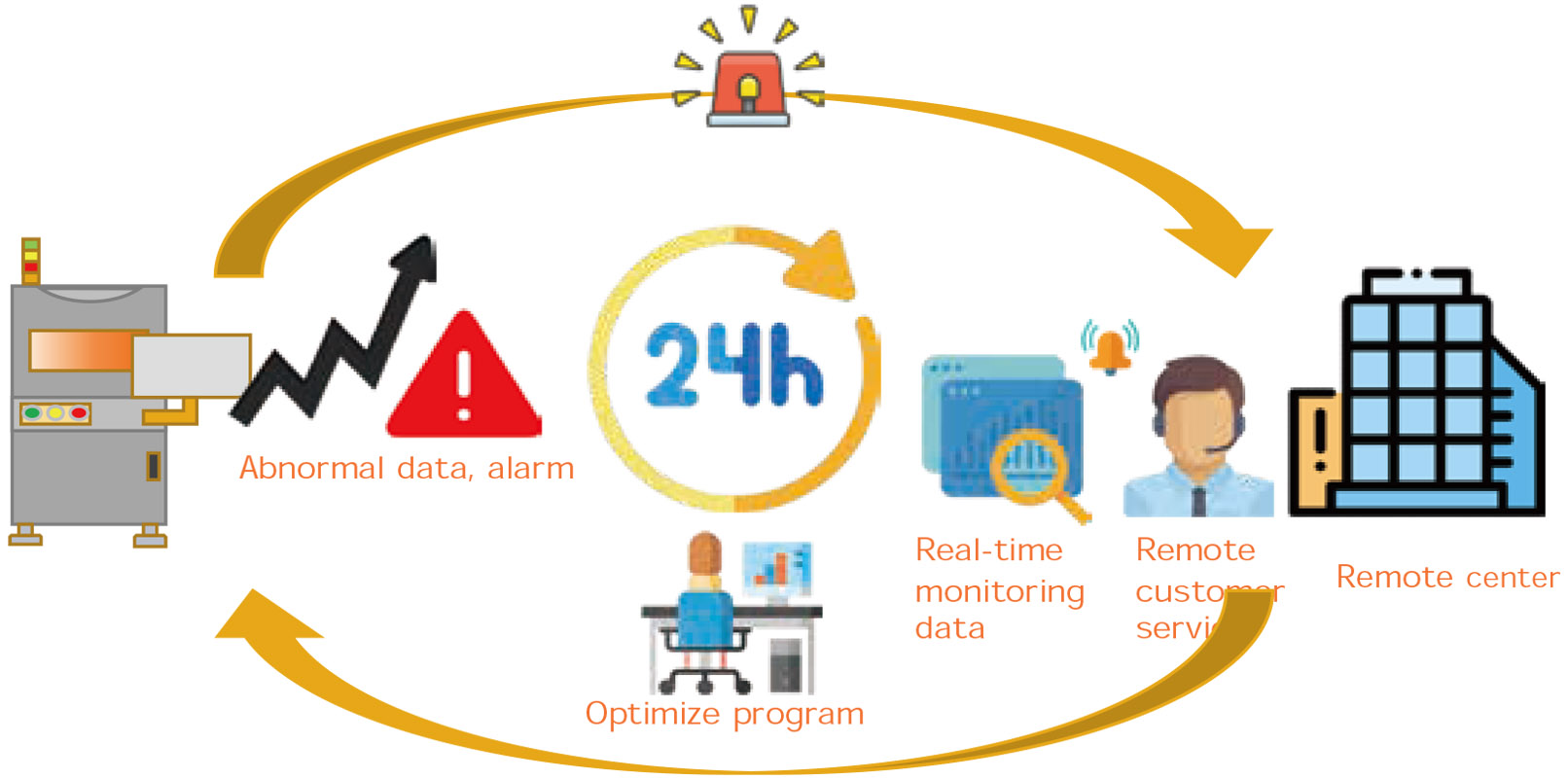

Active service - real-time monitoring

Click the image to view it in full size

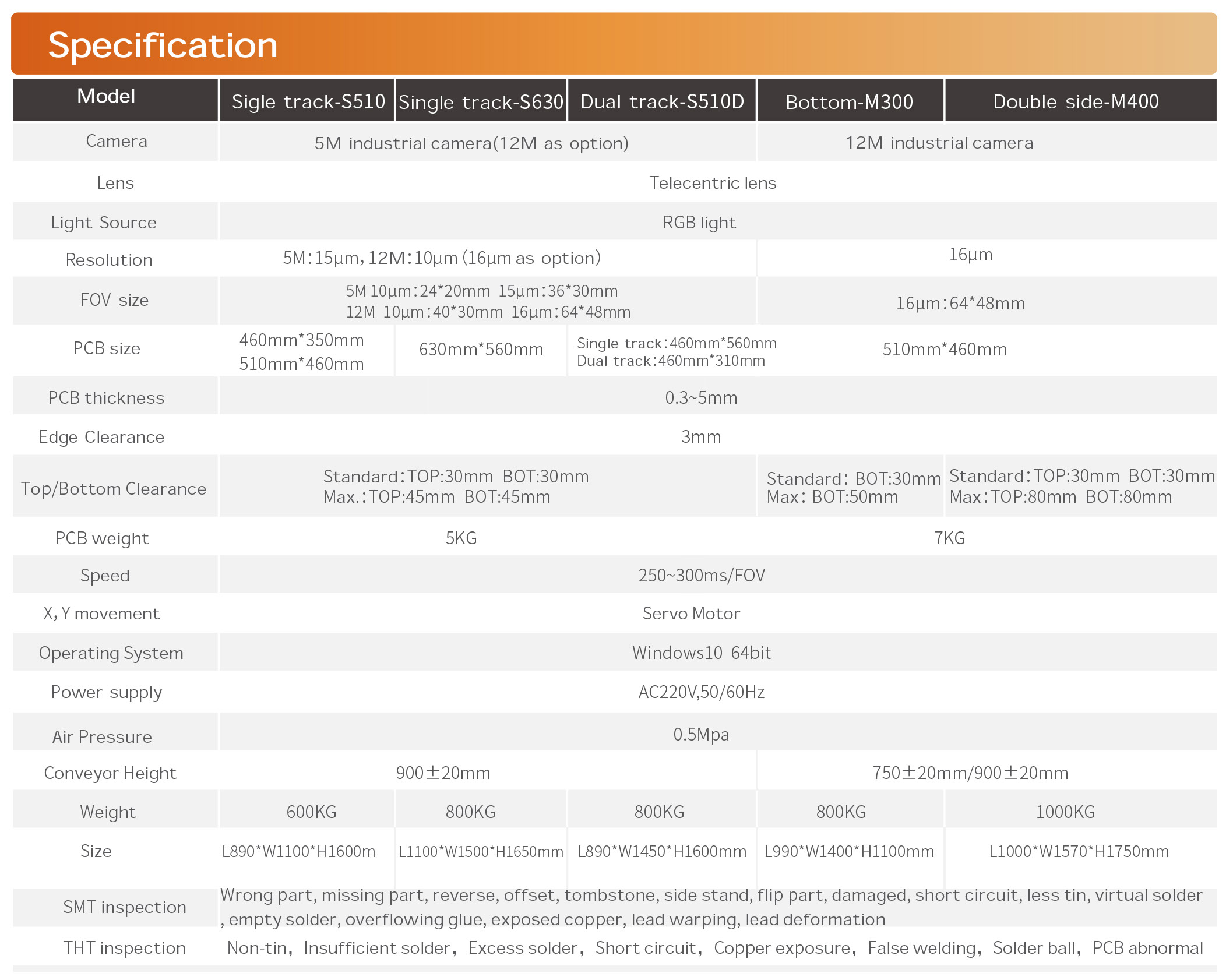

Technical Specifications

S510D Technical Specifications
Click the image to view it in full size
