A-1500

Full 3D detection is efficient, fast and stable

Core Technology and Features

Programmable Structure Grating (PSLM) Technology

Completely in house developed and manufactured Programmable Structural Grating (PSLM) Technology forms full-spectrum structural gratings, which achieves software modulation and control of structural gratings compared to traditional fixed Glass Moire gratings. The detection capabilities and applications range of the equipment have been greatly improved and enhanced.

Click the image to view it in full size

AI Intelligence coupled with Seamless Solution Technology

3DAOI adopts innovative AI intelligence with Seamless Solution Technology, reaching a level that cannot be distinguished by the naked eye. The problems encountered at the joint inspection between FOV and FOV in traditional AOI, such as uneven surfaces, uneven color, and image distortion, have been perfectly resolved. Improve the positioning accuracy of the detection and reduces program debugging fine tuning time.

After AI Intelligent Seamless Image Splicing technical process, the misaligned image, uneven iamge,uneven color and distorted image will disappear.
After AI Intelligent Seamless Image Splicing technical process, the misaligned image, uneven iamge,uneven color and distorted image will disappear.
Click the image to view it in full size

Super RGB Pro 2D Light

3D AOI adopted the independently developed enhanced multi angle, multi region, and tunable RGB + W+ coaxial 2D light source design; Suitable for detecting components, solder joints, and characters in various situations.

Lower Angle Light: Characters silkscreen
Lower Angle Light: Characters silkscreen
Click the image to view it in full size
 Higher Angle Light: Pin
Higher Angle Light: Pin
Click the image to view it in full size
Solder Pad Light: Solder Pad
Solder Pad Light: Solder Pad
Click the image to view it in full size
 Solder Joint Light:Solder Joint
Solder Joint Light:Solder Joint
Click the image to view it in full size

Intelligent program editing: Simple and Fast

3DAOI uses an intelligent program editing method and a template type parameter setting method to facilitate rapid programming and debugging.

Click the image to view it in full size

3D+2D Body Positioning Technology

3DAOI uses 3D body positioning technology, assisted by 2D positioning technology, to ensure accurate body and pin positioning of components such as Chip and IC, and accurate body positioning of dark colored special components etc.

Click the image to view it in full size

CXP Camera Solution with High count,4/8 Projectors Detection Solution

3DAOI camera makes use of Coa X Press (CXP-6) standard, with a 1200W resolution and a rate of 188 s, to ensure industry leading inspection speed. 3DAOI uses optional 4 projectors+8 projectors combined with PSLM multi frequency projection capabilities to achieve the best detection solution, covering all SMT applications.

Click the image to view it in full size

SPC Analysis Software and Closed-loop Control Settings

3DAOI has complete SPC analysis software and closed-loop control, ensuring that the inspection data of 3DAOI could be completely recorded and analyzed, and with highly accurate traceable results. 3DAOI three-point integration function enables the resolution of specific measurement value of a single PAD using Sinic-Tek's 3D SPI and 3D AOI.

Click the image to view it in full size

The Whole SMT Line Layout

Click the image to view it in full size

Technical Specifications

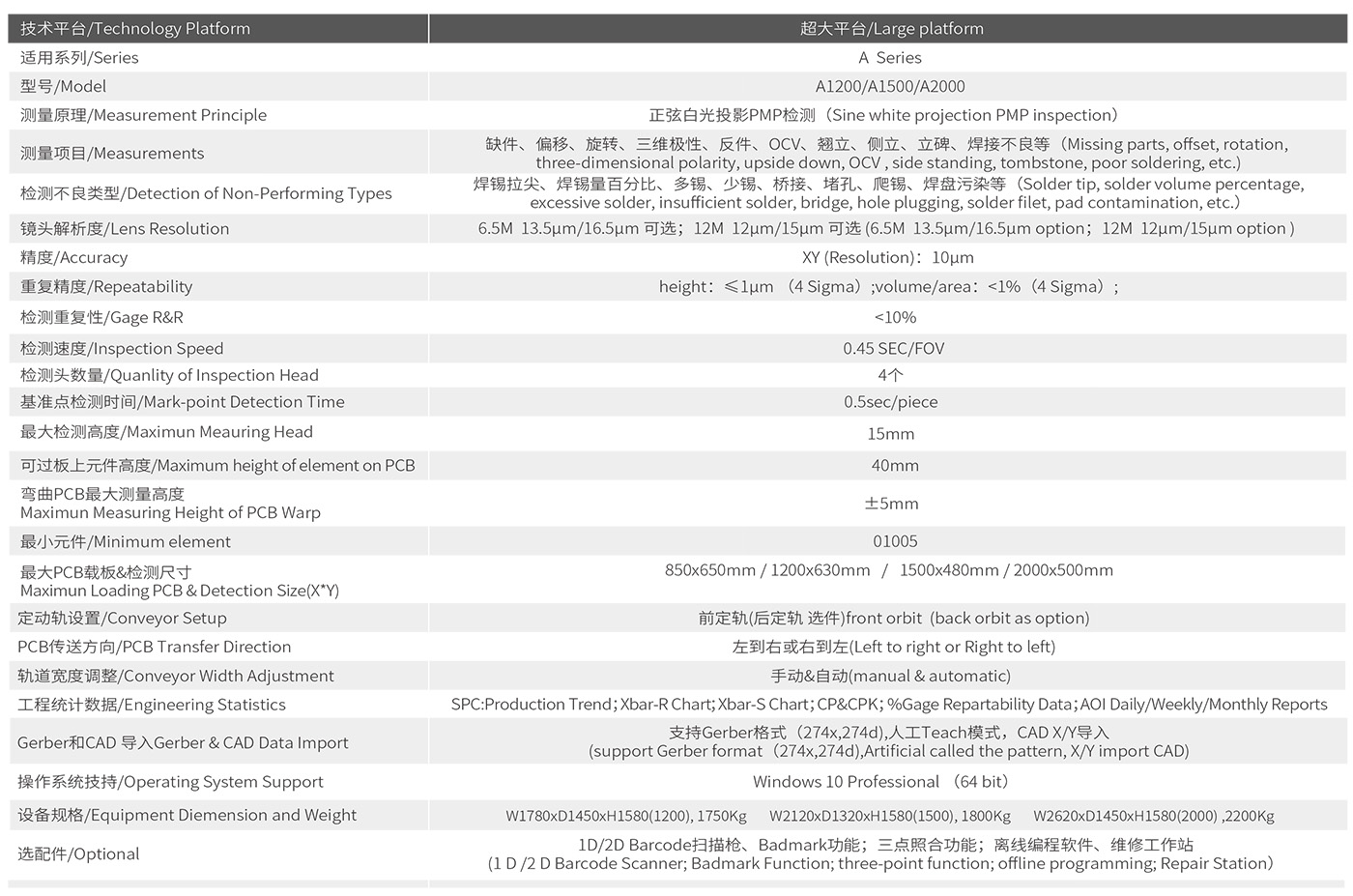

A-1500 Technical Specifications
